Mungkin sebagian orang mengenal produk kelas atas MSI adalah versi Gaming, tetapi bagi yang menyukai overclocking tentu lebih memilih versi Mpower, MpowerMax atau Xpower. Ya seri yang ada embel-embel Power diperuntukan bagi mereka yang menginginkan sesuatu yang lebih..
Berikut kita akan mencoba mengenalkan mainboard MSI Z87 MPower
DUS PACKING
|
Dari Depan
|
|
Dari Depan |
|
dari dalam |
|
dari belakang |
FITUR DAN SPESIFIKASI
Dari web resmi MSI dapat kita liat spesisikasi sbb:
CPU :
- 4th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® /Celeron® processors for LGA 1150 – Intel® Z87 Express Chipset
- Support four DDR3 DIMMs 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(OC) DRAM, 32GB Max
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
Slots :
- 3 x PCIe 3.0 x16 slots (support x16, x8/x8, x8/x4/x4 modes)
- 4 x PCIe 2.0 x1 slots
On-Board SATA :
- SATAIII controller integrated in Intel® Z87 chipset
- Up to 6Gb/s transfer speed.
- 1 x mSATA 6Gb/s port*
- Supports six SATA ports (SATA1~6) by Z87
- SATAIII controller integrated in ASMedia® ASM1061 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATA ports (SATA7~8) by ASM1061
*The SATA5 port will be unavailable when a SSD installed in the mSATA port.
** Supports Intel Core processors on Windows 7 and Windows 8.
RAID :
- SATA1~6 ports support Intel Rapid Storage Technology enterprise (AHCI / RAID 0/1/5/10) by Intel Z87
USB :
- 4x USB 3.0 ports (available through the internal USB connectors)
- 6x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors**)
- 4 x USB 3.0 ports on the back panel
- 2 x USB 3.0 ports on the back panel
Audio :
- Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
LAN :
- Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Killer® E2205 Gigabit LAN controller*
*The Killer Network Manager is only available for Windows 7 and Windows 8 currently. The supported drivers for other operating systems would depend on the vendor providing or not.
Multi-GPU :
- Supports 3-Way AMD CrossFireTM Technology*
- Supports 2-Way NVIDIA® SLITM Technology
- Supports Lucid Virtu MVP 2.0*
*Supports Windows 7 and Windows 8.
Internal I/O Connectors :
- ATX 24-Pin power connector
- 2 x 8-pin ATX 12V power connector
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin System fan connectors
- 8 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.0 connectors (supports additional 4 USB 3.0 ports)
- 1 x Discharge jumper
- 1 x Multi BIOS Switch
- 1 x Front Panel Audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 14 x V-Check points (7x V-Check connectors, 7x V-Check spots)- 1 x Power button
- 1 x GO2BIOS button
- 1 x OC Genie button
- 1 x Reset button
- 2 x Base Clock control buttons
- 1 x Clear CMOS jumper
- 1 x Power button
- 1 x OC Genie mode switch
- 1 x 2-Digit Debug Code LED
- 1 x Wi-Fi/ Bluetooth module connector
Back Panel I/O Ports :
- 1 x PS/2 keyboard/mouse combo port
- 1 x Clear CMOS button
- 1 x Optical S/PDIF-out port
- 2 x USB 2.0 ports
- 6 x USB 3.0 ports
- 1 x RJ45 LAN jack
- 1 x 6 in 1 OFC audio jack
- 1 x DisplayPort
- 2 x HDMI ports
BIOS
- The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Dimension :
- - 30.4cm(L) x 24.4cm(W) ATX Form Factor
Mounting :
Z87 MPOWER MAX Features :
- Intel® Z87 Express Chipset
- Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
- Supports DDR3-3000(OC) Memory
- Supports USB 3.0 + SATA 6Gb/s
- 20 Phase DigitALL Power Design
- Multi-GPU: NVIDIA SLI & AMD CrossFire Support
- OC Certified: Military Class Burn-in Test Passed
- Military Class 4: Top Quality & Stability
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- PCI Express Gen 3: World’s 1st PCI Express Gen 3 Motherboard Brand
- Audio Boost: Reward Your Ears with True Quality
- Killer Ethernet: Kill Your Lag
- Sound Blaster Cinema: Realistic Surround Sound Experience
- Lucid Virtu MVP 2.0: Uncompromised Game Response Performance
- Wi-Fi 802.11n, Bluetooth 4.0, Intel® Wireless Display

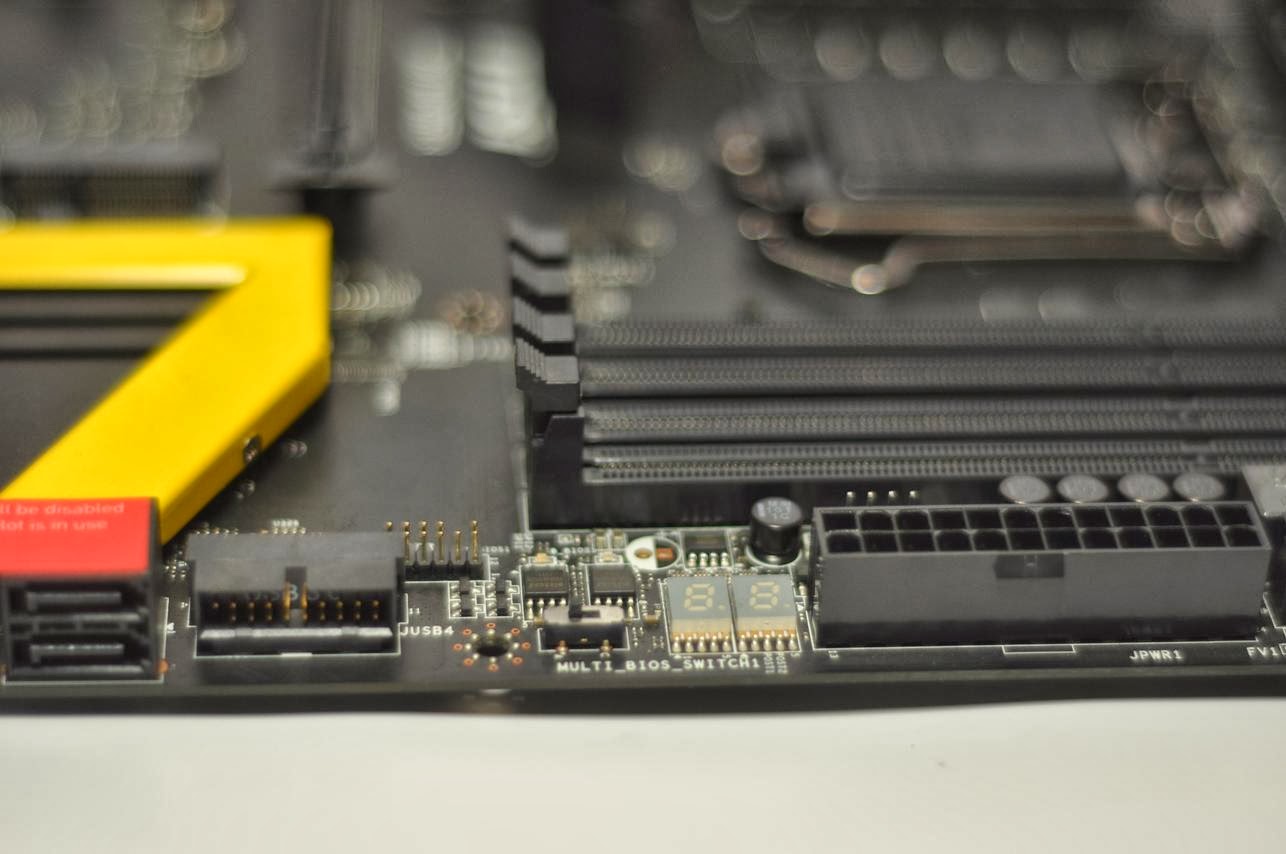

INSIDE MAINBOARD
|
Dari Depan |
PAKET PEMBELIAN
- User Manuals
- Installation Discs
- SATA Cables
- Quick Connect Front Panel Connectors
- V-Check Point Leads
- WiFi/WiDi module
- 2x WiFi Antennae
- SLI Bridge
- IO Shield
- MSI Gaming shield Case Badge Decal
|
Fitur Audio
|
BIOS MAINBOARD
- Distributor : Alfa Artha Andaya
- Harga : USD 310 (kisaran)
- Garansi : 3 Tahun
- Website : www.msi.com
