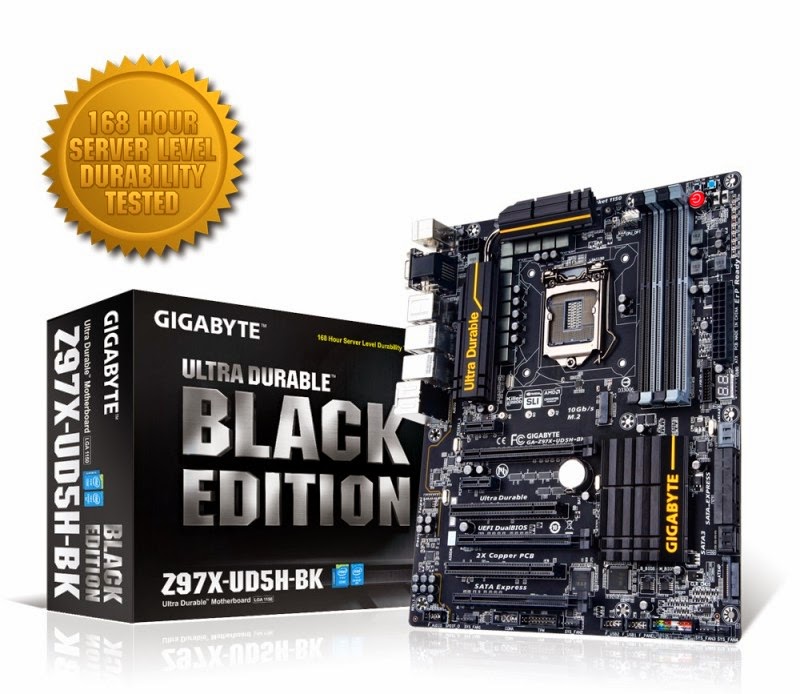

Gigabyte kembali mengeluarkan produk motherboard berchipset Z97, tetapi kali ini sedikit berbeda dengan seri Ultra Durable yang lain. Z97X-UD5H-BK menggunakan board "black edition". Seri Black edition ini oleh gigabyte telah dipastikan dan di uji kehandalan serta daya tahannya dengan test 168 jam dengan test sekelas server. Tidak hanya itu Gigabyte juga menggunakan komponen kelas tinggi diantaranya "DuraBlack” solid capacitors dan dual layer copper PCB. Beberapa fitur lainnya adalah Dual Lan Killer, extra SATA III ports, extra USB 3.0 ports, SATA Express and M.2, support for 3-Way CrossFire, a dual UEFI BIOS, high quality ALC1150 Realtek audio, voltage measurement points, onboard buttons dan memiliki 12 phase CPU VRM. Mari kita lihat lebih dekat motherboard ini
SPESIFIKASI:
Prosesor |
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
Chipset |
- Intel® Z97 Express Chipset
|
Memori |
- 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR3 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) |
Kartu Grafis Terintegrasi | Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz
* Support for HDMI 1.4a version.
- Support for up to 3 displays at the same time
- Maximum shared memory of 1 GB
|
Audio |
- Realtek® ALC1150 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
LAN |
- 1 x Qualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit) (LAN1)
- 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)
* Teaming is not supported.
|
Slot Tambahan |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX8 and PCIEX16 slots. When the PCIEX4 slot is populated, the PCIEX16 slot will operate at up to x8 mode and the PCIEX8 will operate at up to x4 mode. * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.) (The PCIEX16, PCIEX8 and PCIEX4 slots conform to PCI Express 3.0 standard.)
- 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
- 2 x PCI slots
|
Teknologi Multi Grafis |
- Support for 3-Way/2-Way AMD CrossFire™ and 2-Way NVIDIA® SLI™ Technology
|
Antarmuka Penyimpanan | Chipset:
- 1 x M.2 PCIe connector
(Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support)
- 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors (SATA3 0~5)
(M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.)
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
Marvell® 88SE9172 chip:
- 2 x SATA 6Gb/s connectors (GSATA3 6~7)
- Support for RAID 0 and RAID 1
* Due to system limitation, Intel RAID and Marvell RAID can only use either one. |
USB | Chipset:
- 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset + Renesas® uPD720210 USB 3.0 Hub:
- 4 USB 3.0/2.0 ports on the back panel
|
Konektor I/O Internal |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x PCIe power connector
- 1 x M.2 PCIe connector
- 1 x SATA Express connector
- 8 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 4 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header
- 1 x power button
- 1 x reset button
- 1 x Clear CMOS button
- 2 x BIOS switches
- Voltage Measurement Points
|
Konektor Panel Belakang |
- 1 x PS/2 keyboard/mouse port
- 1 x optical S/PDIF Out connector
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 6 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 2 x RJ-45 ports
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
|
Pengontrol I/O |
- iTE® I/O Controller Chip
|
Pengawasan Hardware |
- System voltage detection
- CPU/System/Chipset temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/System overheating warning
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
BIOS |
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Fitur Unik |
- Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup Fast Boot ON/OFF Charge Smart TimeLock Smart Recovery 2 System Information Viewer USB Blocker
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install
|
Paket Sofware |
- Norton® Internet Security (OEM version)
- Intel® Rapid Start Technology
- Intel® Smart Connect Technology
- Intel® Smart Response Technology
|
Sistem Operasi |
- Support for Windows 8.1/8/7
|
Form Factor |
- ATX Form Factor; 30.5cm x 24.4cm
|
|
|
INTERIOR DAN EKSTERIOR
Dari segi penampilan Gigabyte merubah total dus nya, terlihat tulisan black edition yang sangat dominan, dan dusnya full black. Untuk Kelengkapan penjualannya terdapat sertifikat stability dan reliability. Untuk yang lainnya standart, tapi yang agak berbeda adalah bagian kabel sata yang sudah di sleving warna hitam.
Fisik motherboardnya dominan warna hitam, dengan logo Utlta durable dan Gigabyte berwarna kuning. Kesan motherboard extrem sangat melekat di sini. Gigabyte Z97X-UD5H-BK (LGA 1150) “Black Edition” ini memiliki 12 power phase dengan heatsing ber heatpipe berukuran 8mm.
Dibagian lainnya terdapat delapan port SATA 3.0, dan sebuah sata express. Dibagian atasnya terdapat debug led, on of power button
Pada bagian bawah terdapat conector front panel, USB dan dua buah ic bios.
Bagian I/O dan sound, tidak seperti seri sniper yang sangat kental dalam fitur sound. Untuk motherboard ini Sound nya kelihatan standart tetapi melihat chipsetnya saya rasa sound nya juga sangat menjanjikan.
